Boiler Type oil expeller

Mechanical Extraction

Boiler Type oil expeller

Pramukh New Oil-N-Oil Series Oil Expellers are designed to meet the need of small and mid-sized mechanical extraction plants. This series includes fabricated or steel single cast chamber Expellers with hard-faced or carbon steel hardened and tempered wear parts as well as other value-added options.

Features

  • Low maintenance, sturdy construction and easy to install.
  • Independent gearbox system reduces noise level, consume less power and ensure zero contamination of mineral oil with edible oil.
  • The SS Seal ring is fitted between worm assembly parts to prevent seized parts and shaft damage.
  • Independent, in-built Oil-N-Foots adjustable conveyor for simpler cleaning and less labour intensive hygiene operations.
  • The frequency drive controls the speed adjustment of feeding screws. They are designed to obtain maximum feeding according to the raw material features.
  • A reducer motor drives the feeding screw. Feeding screw revolutions are controlled with frequency adjustment, ensuring maximum operational capacity of the press.

Dimensions

Units A B C1 D E F G2
NMK I 2574 2185 518 755 720 1100 1900
NMK II/III 3180 2745 680 875 1080 1612 2200
NMK IVC 3490 3030 821 875 1080 1678 2500
NMK VII 4473 3790 980 1170 1190 1795 3000
MK VIII 5750 4950 1450 1300 1500 2200 4300

Technical specifications

Space Unit Pre-Press Full-Press
Type NMK-VII MK-VIII NMK-I NMK-II NMK-III NMK-IVC NMK-VII NMK-VIII
Capacity MT/24h 30-40* 70-80* 3* 5-6* 8-9* 10-12* 25-30* 50-60*
Residual Oil % 16-20 16-20 7-9 7-9 7-9 7-9 7-9 7-9
Power Rating1 HP 75 150 15 25 30 40 75 150
Power Rating2 HP 0.5 1 - - - - 0.5 1
Chamber Size DxL mm 250/230 X 1565L 279.5/254 X 2400L 127 X 705L 152.4 X 840L 178 X 840L 178/222 X 1117.6L 279.5/254 X 2400L
Approx Weight MT 6 9 2.2 3 3.2 3.5 6 9

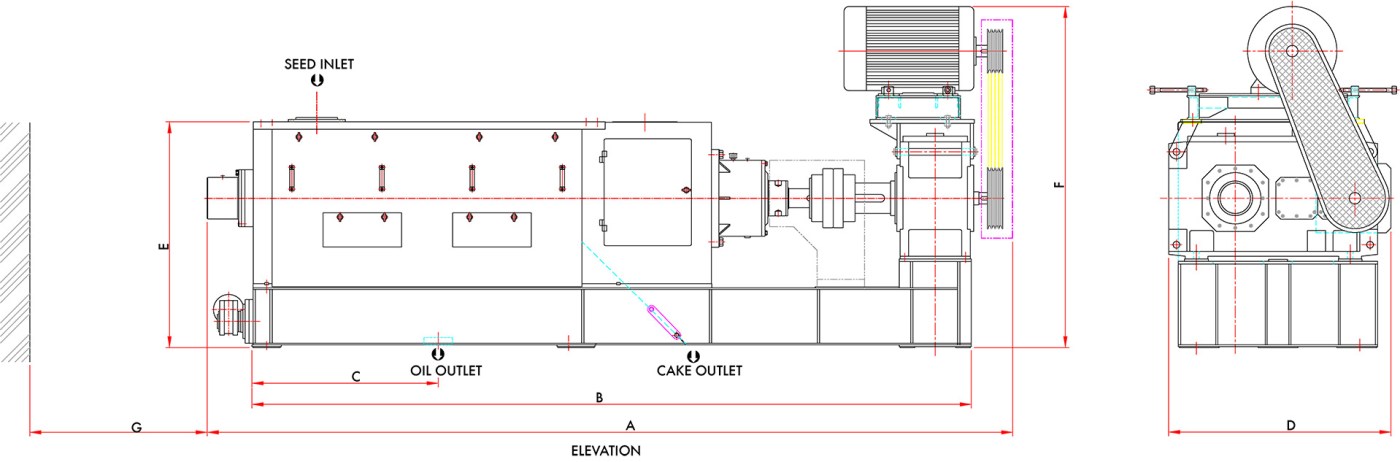

Technical drawing
