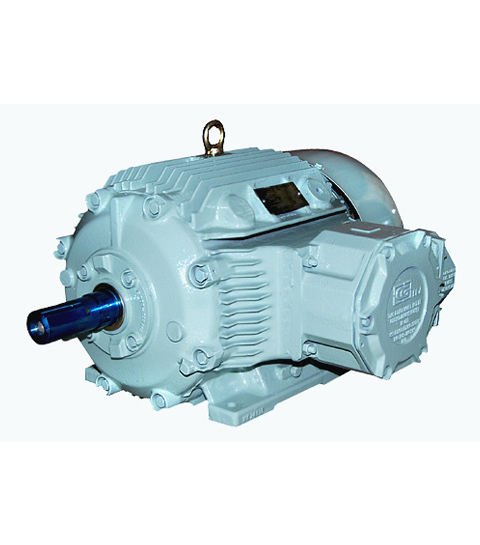

Flame Proof Motors Ex 'd' (LV)

CG offers wide range of low voltage Flameproof Squirrel Cage & Slip Ring electric motors for operation in hazardous and hostile environments, ranging from 0.37 kW to 355 kW. These Flameproof Motors are licensed by a European notified body (BASEEFA) and Indian notified body (ERTL/DGMS/DGFAS&LI).All relevant products fully comply with the requirements of the ATEX & CE Directives.

We also offer a complete range of Squirrel Cage Motors for Gas Group IIC. These motors are manufactured under most stringent quality control norms for IIC atmosphere and are duly tested at ERTL, Kolkata.

• Standard Motors are designed for foot mounting; other mountings are also available on request.
• Standard Levels of enclosure protection for motor and terminal box is IP55. With IP56,IP65 and IP66 available on request
• All Hazardous area motors (except for Gas Group IIC-available in TOP only) have terminal box on the RHS as standard. Top terminal box can be offered on request.
• Standard Paint shade is anti corrosive epoxy light grey 631 as per IS-5, others are also available on request
• The flame proof motors manufactured by CG are suitable for Temperature Class T4 as per IS 6381

• Thermistor
• Space Heater
• Insulated Bearing ( Frame IEC 200 and above)
• Roller Bearing (Frame IEC 225 and above)
• Encoder Mounting arrangement
• MS/FRP Canopy
• Double Compression Cable Glands
